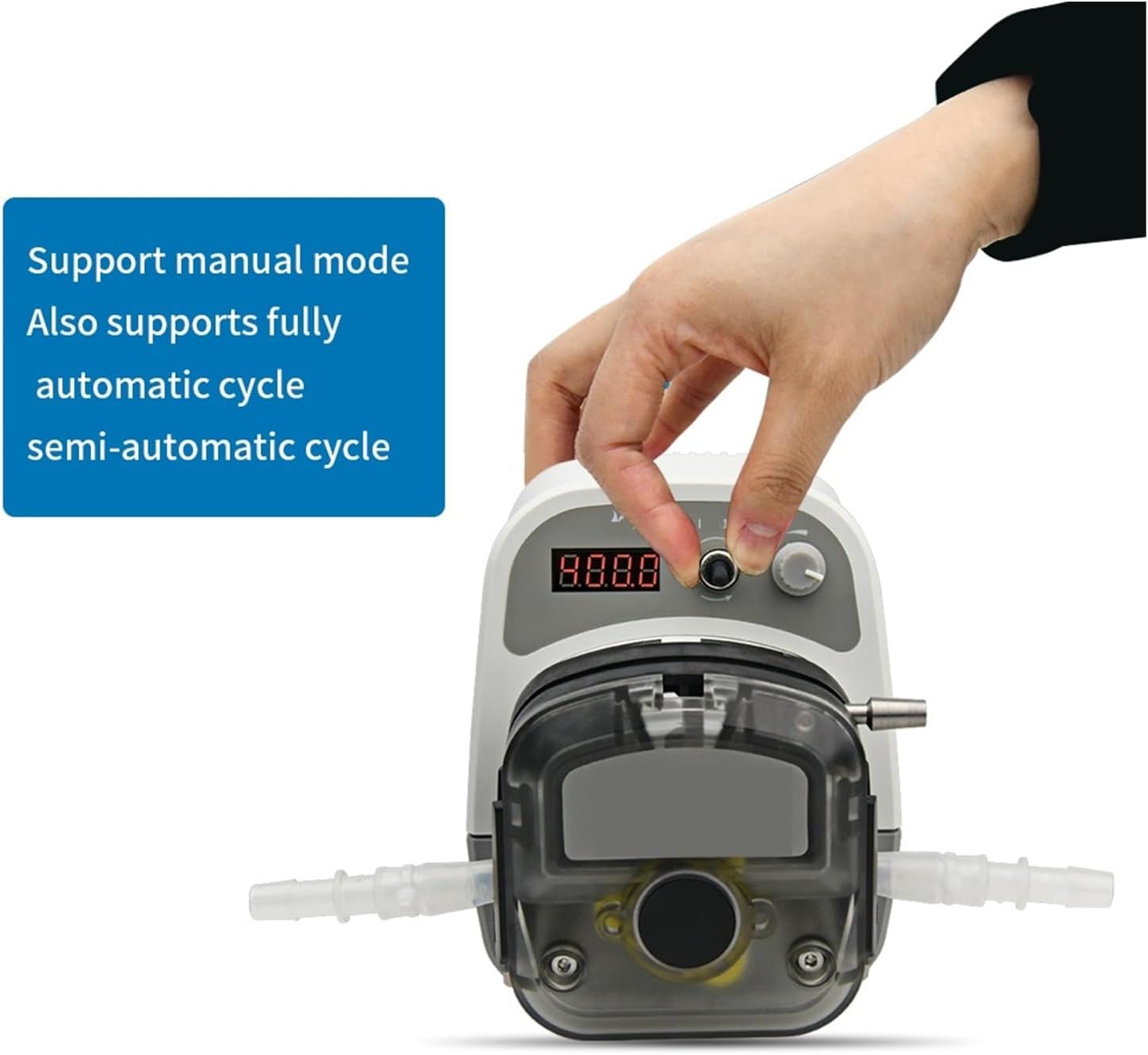

Filling Machine DIP1500 Intelligent Lab Peristaltic Pump 24V Stepper Motor Dosing Pump with External Power for Liquid Transfer Laboratory for Liquid and Paste

TubeID: inner diameterOD: outer diameterSpeed range(RPM)Flow rate(ml/min)Tubing lifetimeTubing working temperature3-rotor Pump headS18ID7.9 x OD11.1mm0.1-4001500200H-60~120Support manual modeSupport fully automatic cycleSemi-automatic cycleManual start/stopSpeed controlBasic ParametersVoltage: 24VPower: Less than 50WCurrent: 2A maxFlow range: 1500ml/minPump tube: SiliconeExternal analog signal control: 4-20mA, 0-5V, 0-10VDisplay mode: LED 4-digit digital tube, Speed display, duration displayWorking mode: Fully automatic cycle, semi-automatic cycle, manualSupport function: Start and stop, forward and reverse, speed adjustment, etc.The back of the pump(picture is GB type)Left is Combination control powerRight is Power socketVarious Applications# Canned liquid# Laboratory# Food industry# Medical equipmentMore DetailsNo 1: reservedNo 2: 485 BNo 3: 485 ANo 4: Foot switch +No 5: Foot switch -No 6: Analog signal 5V-No 7: Analog signal 5V+No 8: Analog signal mA-No 9: Analog signal mA+Combination control port1. 485 communication (2, 3 feet)2. External start and stop control (4, 5 feet)3. Analog signal control 0-5V (6, 7 feet)4. Analog signal control 4-20mA (8, 9 feet)Size: 120*210*155.5 mm(Include pump head)Note: There is an error in manual measurement, please refer to the design drawing size.

• Power supply: External power adapter
• Working temperature: -20~60
• Range of rotation: 0.1rpm-400rpm
• Speed adjustment resolution: 0.1rpm
• Control method: Encoder, toggle switch, external analog signal control, RS485 communication control, foot switch control
